Product Detail

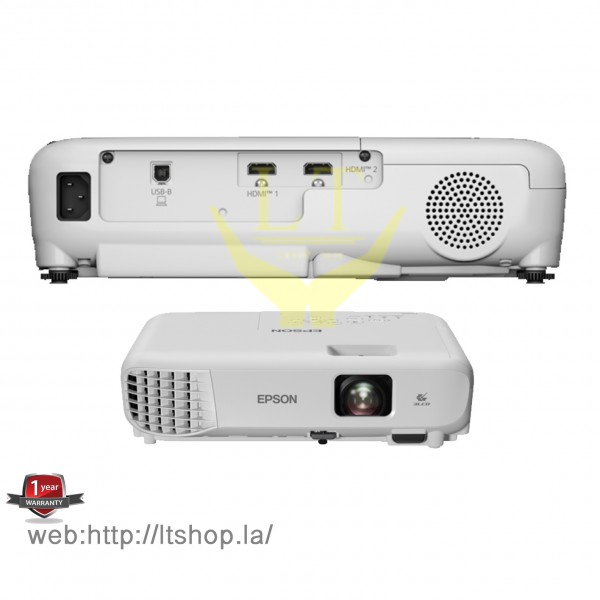

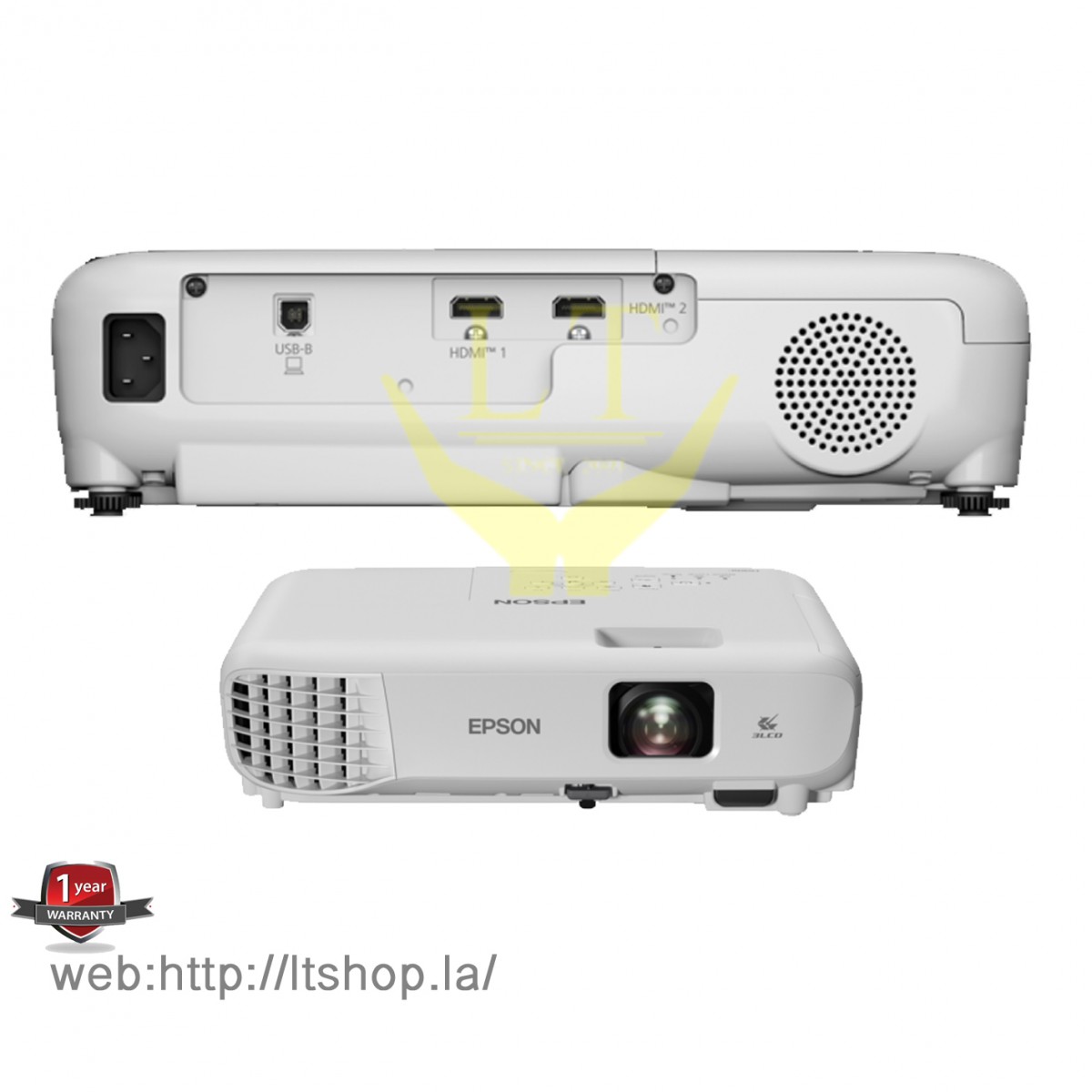

Model :EB-E12
Projector Technology :RGB liquid crystal shutter projection system (3LCD)
Resolution :1024 x 768 (XGA)
Display Compatibility :N/A
Display Color :N/A
Display Size :ขนาดหน้าจอมาตรฐาน 60 นิ้ว (1.76 เมตร)
Brightness (ANSI Lumens) :3,600 lm / 2,200 lm (Normal / Eco)
Contrast Ratio :15,000 : 1
Aspect Ratio :4:3
Distance :Zoom Wide : 30" - 350" [0.87 - 10.34 m] / Zoom Tele : 15" - 175" [0.87 - 10.34 m]
Throw Ratio :1.44 – 2.88
Lens :F-Number : 1.44 /Focal Length : 16.7 mm / No Optical Zoom / Focus (Manual)
Projection Offset :N/A
Zoom Ratio :1.0 - 2.0 (Digital Zoom)
Panel Display :N/A
Interface :2 x HDMI Input (HDCP 1.4) / 1 x USB Type B (For Firmware Update, Copy OSD Settings)
Card Reader :None
Network :None
Speaker :Monaural 2W x 1
Light Source :Lamp Type 210 W UHE / 0.55 นิ้ว (C2 Fine)
Lamp Life(STD/ECO)(hr) :6,000 hours / 12,000 hours
Keystone Correction :±30° / ±30° (Vertical/Horizontal)
Audible Noise :37dB / 28dB (Normal / Eco)
Special Features :N/A
Power Supply :100-240 VAC ±10%, 50/60 Hz
Power Consumption :Lamp Normal : 332 W / Lamp Extended : 231 W / Standby : 0.3 W
Environment :
Dimension :(W x D x H) : 30.20 x 23.40 x 7.70 cm
Net Weight :2.40 KG
Package Dimension :(W x D x H) : 32.77 x 100.47 x 18.81 cm
Gross Weight :7.88 KG
Volume :488,009.03 cm3
Projector Technology :RGB liquid crystal shutter projection system (3LCD)
Resolution :1024 x 768 (XGA)
Display Compatibility :N/A
Display Color :N/A
Display Size :ขนาดหน้าจอมาตรฐาน 60 นิ้ว (1.76 เมตร)
Brightness (ANSI Lumens) :3,600 lm / 2,200 lm (Normal / Eco)
Contrast Ratio :15,000 : 1
Aspect Ratio :4:3
Distance :Zoom Wide : 30" - 350" [0.87 - 10.34 m] / Zoom Tele : 15" - 175" [0.87 - 10.34 m]
Throw Ratio :1.44 – 2.88
Lens :F-Number : 1.44 /Focal Length : 16.7 mm / No Optical Zoom / Focus (Manual)
Projection Offset :N/A
Zoom Ratio :1.0 - 2.0 (Digital Zoom)
Panel Display :N/A
Interface :2 x HDMI Input (HDCP 1.4) / 1 x USB Type B (For Firmware Update, Copy OSD Settings)
Card Reader :None
Network :None
Speaker :Monaural 2W x 1
Light Source :Lamp Type 210 W UHE / 0.55 นิ้ว (C2 Fine)
Lamp Life(STD/ECO)(hr) :6,000 hours / 12,000 hours
Keystone Correction :±30° / ±30° (Vertical/Horizontal)
Audible Noise :37dB / 28dB (Normal / Eco)
Special Features :N/A
Power Supply :100-240 VAC ±10%, 50/60 Hz
Power Consumption :Lamp Normal : 332 W / Lamp Extended : 231 W / Standby : 0.3 W
Environment :
Operating Temperature:
Low Altitude (0 - 2,286m/7,500ft): 5 - 40 °C <41 - 104 °F>
High Altitude (Over 2,286m/7,500ft): 5 - 35 °C <41 - 95°F>
20% - 80% Humidity, No Condensation
Operating Altitude:Over 1,500m/4,921ft with High Altitude Mode: 0 - 3,048m (0 -10,000ft)
Start-Up Period:Less than 7 seconds (Epson Logo); Warm-up Period: 30 seconds
Cool Down Period:Instant Off
Air Filter Maintenance Cycle :6,000 hours (Normal) / 12,000 hours (Eco)
Package Contents :สายไฟ 1.8 เมตรรีโมทคอนโทรล พร้อมแบตเตอรี่อัลคาไลน์ AA
คู่มือการใช้งาน
Dimension :(W x D x H) : 30.20 x 23.40 x 7.70 cm
Net Weight :2.40 KG
Package Dimension :(W x D x H) : 32.77 x 100.47 x 18.81 cm
Gross Weight :7.88 KG
Volume :488,009.03 cm3
